DIN 404
PRODUCT INDEX: 1-404
Brand: ABAKOSTEEL
Slotted capstan screws
- Table of sizes

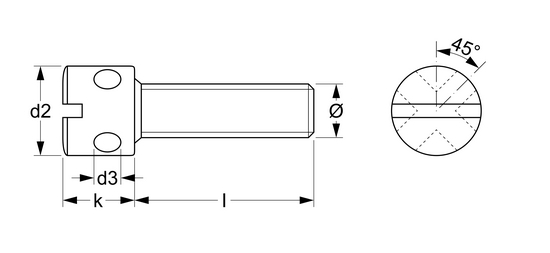

- Technical drawing
Product index Length Diameter Material D2 D3 K Product price 1-404-2-3x10 10.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-3x12 12.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-3x20 20.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-3x4 4.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-3x5 5.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-3x6 6.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-3x8 8.0 3.0 A2 5,5 1,5 4,0 Ask 1-404-2-4x10 10.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x12 12.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x16 16.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x20 20.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x25 25.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x30 30.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x6 6.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-4x8 8.0 4.0 A2 7,0 2,0 5,0 Ask 1-404-2-5x10 10.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-5x12 12.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-5x16 16.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-5x20 20.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-5x25 25.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-5x30 30.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-5x8 8.0 5.0 A2 8,5 2,5 6,5 Ask 1-404-2-6x10 10.0 6.0 A2 10,0 3,0 8,0 Ask 1-404-2-6x12 12.0 6.0 A2 10,0 3,0 8,0 Ask 1-404-2-6x16 16.0 6.0 A2 10,0 3,0 8,0 Ask 1-404-2-6x20 20.0 6.0 A2 10,0 3,0 8,0 Ask 1-404-2-6x25 25.0 6.0 A2 10,0 3,0 8,0 Ask 1-404-2-6x30 30.0 6.0 A2 10,0 3,0 8,0 Ask 1-404-4-3x10 10.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-3x12 12.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-3x20 20.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-3x4 4.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-3x5 5.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-3x6 6.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-3x8 8.0 3.0 A4 5,5 1,5 4,0 Ask 1-404-4-4x10 10.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x12 12.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x16 16.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x20 20.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x25 25.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x30 30.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x6 6.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-4x8 8.0 4.0 A4 7,0 2,0 5,0 Ask 1-404-4-5x10 10.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-5x12 12.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-5x16 16.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-5x20 20.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-5x25 25.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-5x30 30.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-5x8 8.0 5.0 A4 8,5 2,5 6,5 Ask 1-404-4-6x10 10.0 6.0 A4 10,0 3,0 8,0 Ask 1-404-4-6x12 12.0 6.0 A4 10,0 3,0 8,0 Ask 1-404-4-6x16 16.0 6.0 A4 10,0 3,0 8,0 Ask 1-404-4-6x20 20.0 6.0 A4 10,0 3,0 8,0 Ask 1-404-4-6x25 25.0 6.0 A4 10,0 3,0 8,0 Ask 1-404-4-6x30 30.0 6.0 A4 10,0 3,0 8,0 Ask Product index Length Diameter Material D2 D3 K Product price
