Turnbuckle with fork and terminal / Turnbuckles

Table of sizes

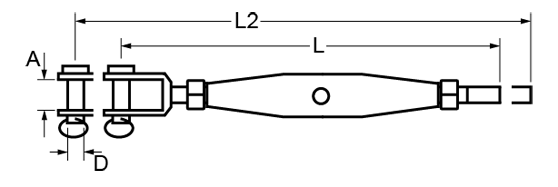

Technical drawing

Product index	Diameter	Material	L	L2	A	D	M	Product price
2-2067-4-5/2,5-1	2,5	A4	155	220	6	5	5	Ask
2-2067-4-6/3-1	3	A4	175	245	7,5	6	6	Ask
2-2067-4-8/4-1	4	A4	200	275	11	8	8	Ask
2-2067-4-10/5-1	5	A4	230	320	12	9	10	Ask
2-2067-4-12/6-1	6	A4	285	400	14	12	12	Ask
2-2067-4-14/7-1	7	A4	315	435	15	15	14	Ask
2-2067-4-16/8-1	8	A4	360	500	17	17	16	Ask
2-2067-4-20/10-1	10	A4	410	560	20	20	20	Ask
2-2067-4-20/12-1	12	A4	430	620	23	23	20	Ask
Product index	Diameter	Material	L	L2	A	D	M	Product price
