Copper ferrule / Thimbles and Wire rope clamps

Table of sizes

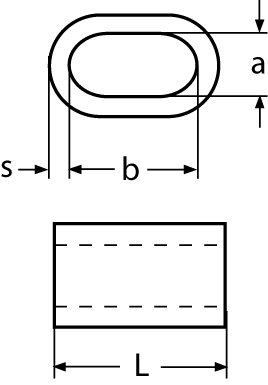

Technical drawing

Product index	Material	Diameter	L	A	B	S	Clamp	Product price
2-2077-10-10-1	Cu	10	39	12,1	24,2	4,5	11	Ask
2-2077-10-12-1	Cu	12	46	14,2	28,4	5,4	13	Ask
2-2077-10-2-1	Cu	2	9	2,7	5,4	1	2,5	Ask
2-2077-10-3-1	Cu	3	13	3,8	7,6	1,5	3,5	Ask
2-2077-10-4-1	Cu	4	16	4,9	9,8	1,9	4,5	Ask
2-2077-10-5-1	Cu	5	21	6,6	13,2	2,5	6	Ask
2-2077-10-6-1	Cu	6	23	7,2	14,4	2,7	6,5	Ask
2-2077-10-7-1	Cu	7	28	8,8	17,6	3,3	8	Ask
2-2077-10-8-1	Cu	8	32	9,9	19,8	3,7	9	Ask
Product index	Material	Diameter	L	A	B	S	Clamp	Product price
