Swage stud with nut, right thread
PRODUCT INDEX: 2-2097
Brand: ABAKOSTEEL
- Table of sizes

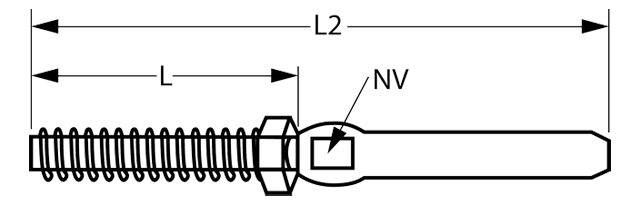

- Technical drawing
Product index Diameter Material L L2 nv The diameter of the rope Product price 2-2097-4-5/2,5 5 A2 40 86 4 2,5 Ask 2-2097-4-6/3 6 A2 48 100 5 3 Ask 2-2097-4-6/4 6 A2 48 110 6 4 Ask 2-2097-4-8/4 8 A2 57 117 6 4 Ask 2-2097-4-10/5 10 A2 63 130 7 5 Ask 2-2097-4-12/6 12 A2 80 162 10 6 Ask 2-2097-4-14/7 14 A2 90 180 12 7 Ask 2-2097-4-16/8 16 A2 100 195 14 8 Ask 2-2097-4-20/10 20 A2 119 230 15 10 Ask 2-2097-4-20/12 20 A2 120 245 17 12 Ask 2-2097-4-22/14 22 A2 140 308 22 14 Ask 2-2097-4-24/16 24 A2 160 363 25 12 Ask Product index Diameter Material L L2 nv The diameter of the rope Product price
