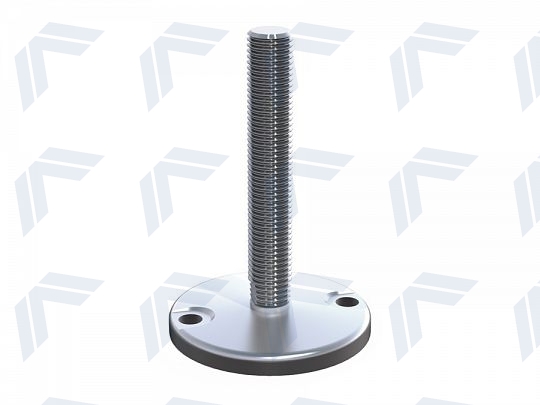

Machine feet type KJ

Machine feet type KJ

PRODUCT INDEX: 3-1015
Brand: ABAKOSTEEL
This high load capacity model has 2 fixing holes, and admits up to 8° slopes on floors and equipment. Alos available with anti-slip rubber.
  • Table of sizes

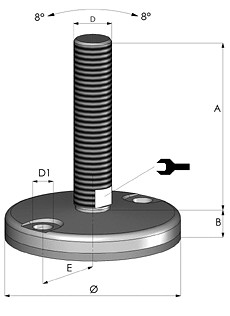

  • Technical drawing
    • Product indexMaterialThe diameter of the base HThe diameter of the pin MDimensions of the MxA2 nutProduct price
      3-1015-2-110-12-100-5A211012100Ask
      3-1015-2-110-12-150-5A211012150Ask
      3-1015-2-110-16-100-5A211016100Ask
      3-1015-2-110-16-150-5A211016150Ask
      3-1015-2-110-16-180-5A211016180Ask
      3-1015-2-110-20-100-5A211020100Ask
      3-1015-2-110-20-150-5A211020150Ask
      3-1015-2-110-20-180-5A211020180Ask
      3-1015-2-110-20-230-5A211020230Ask
      3-1015-2-110-24-100-5A211024100Ask
      3-1015-2-110-24-150-5A211024150Ask
      3-1015-2-110-24-180-5A211024180Ask
      3-1015-2-110-24-230-5A211024230Ask
      3-1015-2-110-30-150-5A211030150Ask
      3-1015-2-110-30-230-5A211030230Ask
      3-1015-2-110-36-230-5A211036230Ask
      3-1015-2-150-16-100-5A215016100Ask
      3-1015-2-150-20-100-5A215020100Ask
      3-1015-2-150-20-150-5A215020150Ask
      3-1015-2-150-20-180-5A215020180Ask
      3-1015-2-150-20-230-5A215020230Ask
      3-1015-2-150-24-100-5A215024100Ask
      3-1015-2-150-24-150-5A215024150Ask
      3-1015-2-150-24-180-5A215024180Ask
      3-1015-2-150-24-230-5A215024230Ask
      3-1015-2-150-30-100-5A215030100Ask
      3-1015-2-150-30-150-5A215030150Ask
      3-1015-2-150-30-180-5A215030180Ask
      3-1015-2-150-30-230-5A215030230Ask
      3-1015-2-150-36-100-5A215036100Ask
      3-1015-2-150-36-150-5A215036150Ask
      3-1015-2-150-36-180-5A215036180Ask
      3-1015-2-150-36-230-5A215036230Ask
      3-1015-2-150-42-100-5A215042100Ask
      3-1015-2-150-42-150-5A215042150Ask
      3-1015-2-150-42-180-5A215042180Ask
      3-1015-2-150-42-230-5A215042230Ask
      3-1015-2-180-24-100-5A218024100Ask
      3-1015-2-180-24-150-5A218024150Ask
      3-1015-2-180-24-180-5A218024180Ask
      3-1015-2-180-24-230-5A218024230Ask
      3-1015-2-180-30-100-5A218030100Ask
      3-1015-2-180-30-150-5A218030150Ask
      3-1015-2-180-30-180-5A218030180Ask
      3-1015-2-180-30-230-5A218030230Ask
      3-1015-2-180-36-100-5A218036100Ask
      3-1015-2-180-36-150-5A218036150Ask
      3-1015-2-180-36-180-5A218036180Ask
      3-1015-2-180-36-230-5A218036230Ask
      3-1015-2-180-42-100-5A218042100Ask
      3-1015-2-180-42-150-5A218042150Ask
      3-1015-2-180-42-180-5A218042180Ask
      3-1015-2-180-42-230-5A218042230Ask
      3-1015-2-90-12-100-5A29012100Ask
      3-1015-2-90-12-150-5A29012150Ask
      3-1015-2-90-12-180-5A29012180Ask
      3-1015-2-90-12-230-5A29012230Ask
      3-1015-2-90-16-100-5A29016100Ask
      3-1015-2-90-16-150-5A29016150Ask
      3-1015-2-90-16-180-5A29016180Ask
      3-1015-2-90-16-230-5A29016230Ask
      3-1015-2-90-20-100-5A29020100Ask
      3-1015-2-90-20-150-5A29020150Ask
      3-1015-2-90-20-180-5A29020180Ask
      3-1015-2-90-20-230-5A29020230Ask
      3-1015-2-90-24-100-5A29024100Ask
      3-1015-2-90-24-150-5A29024150Ask
      Product indexMaterialThe diameter of the base HThe diameter of the pin MDimensions of the MxA2 nutProduct price
