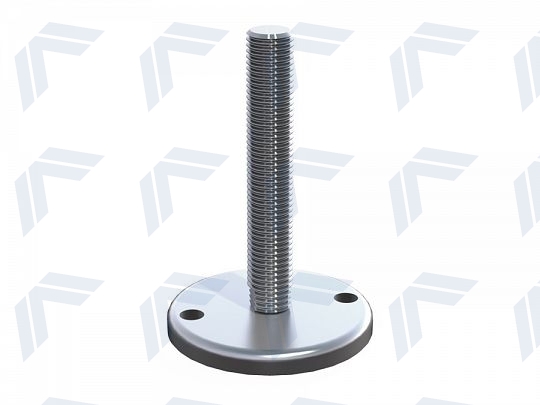

Machine feet type J
PRODUCT INDEX: 3-1040
Brand: ABAKOSTEEL
The J type has a solid design, allows a high load capacity. Admits up to 1 slopes on floors and equipment. The foot plate, has a two fixing holes. Available with anti-slip rubber.
- Table of sizes
- Technical drawing
Product index Material The diameter of the base H The diameter of the pin M Dimensions of the MxA2 nut Product price 3-1040-2-110-12-100-5 A2 110 12 100 Ask 3-1040-2-110-12-150-5 A2 110 12 150 Ask 3-1040-2-110-16-100-5 A2 110 16 100 Ask 3-1040-2-110-16-150-5 A2 110 16 150 Ask 3-1040-2-110-16-180-5 A2 110 16 180 Ask 3-1040-2-110-16-230-5 A2 110 16 230 Ask 3-1040-2-110-20-100-5 A2 110 20 100 Ask 3-1040-2-110-20-150-5 A2 110 20 150 Ask 3-1040-2-110-20-180-5 A2 110 20 180 Ask 3-1040-2-110-20-230-5 A2 110 20 230 Ask 3-1040-2-110-24-100-5 A2 110 24 100 Ask 3-1040-2-110-24-150-5 A2 110 24 150 Ask 3-1040-2-110-24-180-5 A2 110 24 180 Ask 3-1040-2-110-24-230-5 A2 110 24 230 Ask 3-1040-2-110-30-150-5 A2 110 30 150 Ask 3-1040-2-110-30-230-5 A2 110 30 230 Ask 3-1040-2-110-36-230-5 A2 110 36 230 Ask 3-1040-2-150-16-100-5 A2 150 16 100 Ask 3-1040-2-150-20-100-5 A2 150 20 100 Ask 3-1040-2-150-20-150-5 A2 150 20 150 Ask 3-1040-2-150-20-180-5 A2 150 20 180 Ask 3-1040-2-150-20-230-5 A2 150 20 230 Ask 3-1040-2-150-24-100-5 A2 150 24 100 Ask 3-1040-2-150-24-150-5 A2 150 24 150 Ask 3-1040-2-150-24-180-5 A2 150 24 180 Ask 3-1040-2-150-24-230-5 A2 150 24 230 Ask 3-1040-2-150-30-100-5 A2 150 30 100 Ask 3-1040-2-150-30-150-5 A2 150 30 150 Ask 3-1040-2-150-30-180-5 A2 150 30 180 Ask 3-1040-2-150-30-230-5 A2 150 30 230 Ask 3-1040-2-150-36-100-5 A2 150 36 100 Ask 3-1040-2-150-36-150-5 A2 150 36 150 Ask 3-1040-2-150-36-180-5 A2 150 36 180 Ask 3-1040-2-150-36-230-5 A2 150 36 230 Ask 3-1040-2-150-42-100-5 A2 150 42 100 Ask 3-1040-2-150-42-150-5 A2 150 42 150 Ask 3-1040-2-150-42-180-5 A2 150 42 180 Ask 3-1040-2-150-42-230-5 A2 150 42 230 Ask 3-1040-2-180-30-100-5 A2 180 30 100 Ask 3-1040-2-180-30-150-5 A2 180 30 150 Ask 3-1040-2-180-30-180-5 A2 180 30 180 Ask 3-1040-2-180-30-230-5 A2 180 30 230 Ask 3-1040-2-180-36-100-5 A2 180 36 100 Ask 3-1040-2-180-36-150-5 A2 180 36 150 Ask 3-1040-2-180-36-180-5 A2 180 36 180 Ask 3-1040-2-180-36-230-5 A2 180 36 230 Ask 3-1040-2-90-12-100-5 A2 90 12 100 Ask 3-1040-2-90-12-150-5 A2 90 12 150 Ask 3-1040-2-90-12-180-5 A2 90 12 180 Ask 3-1040-2-90-12-230-5 A2 90 12 230 Ask 3-1040-2-90-16-100-5 A2 90 16 100 Ask 3-1040-2-90-16-150-5 A2 90 16 150 Ask 3-1040-2-90-16-180-5 A2 90 16 180 Ask 3-1040-2-90-16-230-5 A2 90 16 230 Ask 3-1040-2-90-20-100-5 A2 90 20 100 Ask 3-1040-2-90-20-150-5 A2 90 20 150 Ask 3-1040-2-90-20-180-5 A2 90 20 180 Ask 3-1040-2-90-20-230-5 A2 90 20 230 Ask 3-1040-2-90-24-100-5 A2 90 24 100 Ask 3-1040-2-90-24-150-5 A2 90 24 150 Ask Product index Material The diameter of the base H The diameter of the pin M Dimensions of the MxA2 nut Product price
