Machine feet type CF

Machine feet type CF

PRODUCT INDEX: 3-1019
Brand: ABAKOSTEEL
The CF and KCF type have offset thread to increase the distance between thread and fixing hole. The CF admits up to 1 slopes and KCF 8 slopes on floors and equipment. Also available with anti-slip rubber.
  • Table of sizes

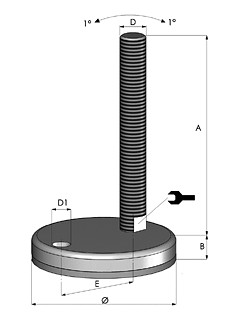

  • Technical drawing
    • Product indexMaterialThe diameter of the base HThe diameter of the pin MDimensions of the MxA2 nutProduct price
      3-1019-2-110-16-100-5A211016100Ask
      3-1019-2-110-16-150-5A211016150Ask
      3-1019-2-110-16-180-5A211016180Ask
      3-1019-2-110-20-100-5A211020100Ask
      3-1019-2-110-20-150-5A211020150Ask
      3-1019-2-110-20-180-5A211020180Ask
      3-1019-2-110-20-230-5A211020230Ask
      3-1019-2-110-24-100-5A211024100Ask
      3-1019-2-110-24-150-5A211024150Ask
      3-1019-2-110-24-180-5A211024180Ask
      3-1019-2-110-24-230-5A211024230Ask
      3-1019-2-110-30-100-5A211030100Ask
      3-1019-2-110-30-150-5A211030150Ask
      3-1019-2-110-30-180-5A211030180Ask
      3-1019-2-110-30-230-5A211030230Ask
      3-1019-2-110-36-100-5A211036100Ask
      3-1019-2-110-36-150-5A211036150Ask
      3-1019-2-110-36-180-5A211036180Ask
      3-1019-2-110-36-230-5A211036230Ask
      3-1019-2-110-42-100-5A211042100Ask
      3-1019-2-110-42-150-5A211042150Ask
      3-1019-2-110-42-180-5A211042180Ask
      3-1019-2-110-42-230-5A211042230Ask
      Product indexMaterialThe diameter of the base HThe diameter of the pin MDimensions of the MxA2 nutProduct price
    • teg cf
